The Definitive Metal Injection Molding Handbook
Comprehensive guide to Metal Injection Molding technology, processes, and applications for engineers, manufacturers, and industry professionals.
Written by 11 industry experts with 150+ years combined experience in Metal Injection Molding

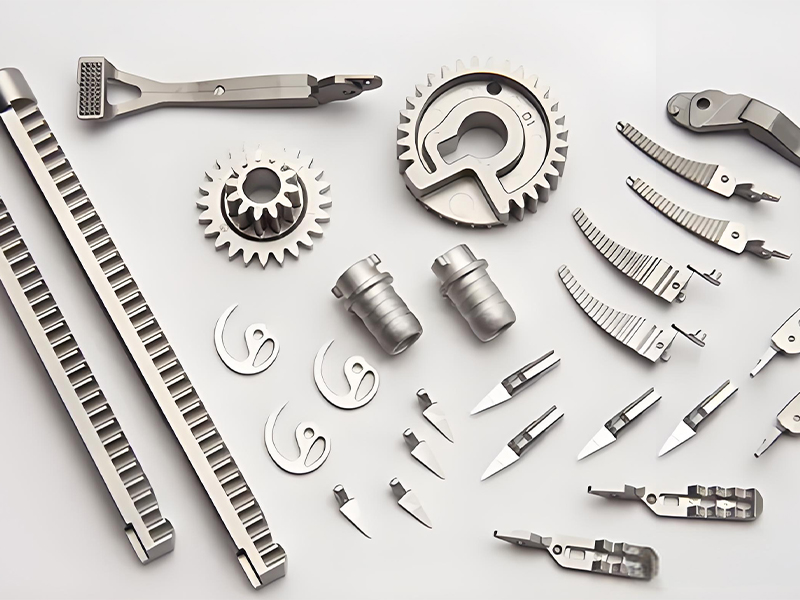

The Most Comprehensive Resource for Metal Injection Molding
This handbook represents the culmination of decades of research, development, and practical application in the field of Metal Injection Molding. Whether you're a seasoned professional or new to the industry, our guide provides invaluable insights into every aspect of this revolutionary manufacturing process.
Development Overview
Trace the evolution of Metal Injection Molding from its inception to its current status as a leading manufacturing technology.
"The development of Metal Injection Molding represents one of the most significant manufacturing breakthroughs of the late 20th century."
The Origins of Metal Injection Molding
The roots of Metal Injection Molding can be traced back to the 1930s with the development of ceramic injection molding. However, it wasn't until the 1970s that significant advancements were made in adapting these principles to metal materials—marking the formative stage of modern metal injection. Early pioneers recognized the potential for creating complex metal parts with high precision and consistency using techniques similar to plastic injection molding but with metal powders.
The first commercial applications of Metal Injection Molding emerged in the 1980s, primarily in the watch and jewelry industries where small, intricate components were needed. These early applications demonstrated the technology's ability to produce complex geometries that were difficult or impossible to achieve with traditional manufacturing methods.
Evolution of Metal Injection Molding equipment from 1980s to present day
Technological Milestones
Early Development
Initial research into adapting ceramic injection molding techniques for metal powders, laying the groundwork for modern Metal Injection Molding.
Commercialization
First commercial applications of Metal Injection Molding in watch components and small precision parts, demonstrating the technology's commercial viability.
Material Expansion
Expansion of material options for Metal Injection Molding, including stainless steels, titanium alloys, and superalloys, broadening application possibilities.
Process Optimization
Significant improvements in Metal Injection Molding process control, simulation software, and quality assurance methodologies.
Industrial Adoption
Widespread adoption of Metal Injection Molding across industries including automotive, medical, aerospace, and consumer electronics.
Advanced Innovations
Integration of Metal Injection Molding with additive manufacturing, AI-driven process optimization, and sustainable material developments.
Current Industry Landscape
Today, Metal Injection Molding is a mature, well-established manufacturing process with a global market size exceeding $3 billion. The industry is characterized by a diverse ecosystem of material suppliers, equipment manufacturers, service providers, and end-users spanning numerous sectors.
The adoption of Metal Injection Molding continues to grow at a steady rate of 7-9% annually, driven by increasing demand for complex, high-performance components in industries such as medical devices, aerospace, and automotive. This growth is further accelerated by ongoing advancements in materials, equipment, and process control.
Global MIM Market Distribution by Industry
Looking forward, the Metal Injection Molding industry is poised for continued innovation, particularly in the areas of sustainable manufacturing practices, digital process integration, and the development of new alloy systems optimized for the MIM process. These advancements will further expand the technology's capabilities and application range.
Molding Process
A detailed breakdown of the Metal Injection Molding process from material preparation to final part production.
"Mastering each stage of the Metal Injection Molding process is essential for achieving consistent, high-quality results."
Overview of the Metal Injection Molding Process
The Metal Injection Molding process combines the design flexibility of plastic injection molding with the material properties of sintered metals, resulting in complex, high-density components. The process—core to the mim process—can be divided into four primary stages: feedstock preparation, injection molding, debinding, and sintering. Each stage of this mim process requires careful control and optimization to ensure the final part meets all specifications.
One of the key advantages of Metal Injection Molding is its ability to produce parts with complex geometries that would be difficult or impossible to achieve with traditional manufacturing processes. This capability, combined with excellent material properties and high production volumes, makes MIM an attractive option for many industrial applications.
The four-stage Metal Injection Molding process workflow
Feedstock Preparation
The first stage in Metal Injection Molding is the preparation of the feedstock – a homogeneous mixture of metal powder and binder material. This critical step directly impacts the quality of the final part, making precise control essential.
Metal Powder Selection
Metal powders used in Metal Injection Molding typically have particle sizes ranging from 1 to 20 microns. The powder characteristics – including shape, size distribution, and purity – significantly influence the flow behavior, packing density, and final mechanical properties. Common powders include stainless steels, titanium, copper, and various alloys.
Binder System
The binder in Metal Injection Molding serves multiple purposes: it provides flowability during injection, maintains the shape during handling, and facilitates uniform packing of metal particles. Binder systems are typically composed of polymers, waxes, and other additives, carefully formulated for specific applications.
The mixing process combines metal powder (typically 60-70% by volume) with the binder system under controlled temperature and shear conditions to create a homogeneous feedstock. This mixture is then pelletized for use in the injection molding stage of Metal Injection Molding.
Injection Molding
During the injection molding stage of Metal Injection Molding, the feedstock is heated to a molten state and injected into a precision mold cavity under high pressure. This process is similar to plastic injection molding but requires careful control of parameters due to the unique characteristics of metal-polymer feedstocks.
Key MIM Injection Parameters
- Melt temperature: Typically 130-200°C, depending on binder system
- Injection pressure: 50-200 MPa to ensure complete mold filling
- Fill rate: Controlled to prevent air entrapment and ensure uniform flow
- Mold temperature: 30-60°C to control cooling and solidification
- Packing pressure: Applied to compensate for shrinkage during cooling
The result of this stage is a "green part" – a component that has the desired shape but contains a significant amount of binder material. These green parts are carefully removed from the mold and prepared for the next stage in the Metal Injection Molding process.
Debinding
Debinding is the process of removing the binder from the green part, preparing it for sintering. This critical stage in Metal Injection Molding must be carefully controlled to prevent defects such as cracking, warping, or distortion of the part.
Thermal Debinding
The most common method, involving controlled heating to vaporize or decompose binder components in a furnace environment.
Solvent Debinding
Uses chemical solvents to dissolve and remove portions of the binder system prior to thermal treatment.
Catalytic Debinding
Employs chemical catalysts to break down binder components at lower temperatures than thermal debinding.
After debinding, the resulting "brown part" retains its shape but has a porous structure and low strength. The brown part contains only a small amount of residual binder, typically 1-5% by weight, which will be removed during the initial stages of sintering. Proper debinding is essential for successful Metal Injection Molding as it directly affects the final part quality.
Sintering
Sintering is the final and most critical stage in the Metal Injection Molding process, where the brown part is transformed into a dense, high-strength metal component. During sintering, the part is heated to a temperature below the melting point of the metal (typically 70-90% of the melting temperature) in a controlled atmosphere.
As the temperature rises, several key phenomena occur in the Metal Injection Molding sintering process: residual binder is removed, metal particles bond together through diffusion, and the part densifies. This densification results in significant shrinkage – typically 15-20% in all dimensions – which must be accurately predicted and accounted for in the mold design.
High-temperature sintering furnace used in Metal Injection Molding
The sintering atmosphere is carefully controlled to prevent oxidation and contamination of the part. Depending on the metal being processed, atmospheres may include nitrogen, hydrogen, argon, or vacuum conditions. The sintering cycle – including heating rate, hold time, and cooling rate – is precisely engineered for each material and part design in Metal Injection Molding to achieve the desired density, microstructure, and mechanical properties.
Quality Issues
Identification, prevention, and resolution of common quality challenges in Metal Injection Molding processes.
"Quality in Metal Injection Molding is achieved through rigorous process control and a deep understanding of how each parameter affects the final part."
Quality Assurance in Metal Injection Molding
Maintaining consistent quality is a critical challenge across metal molding—and particularly acute in Metal Injection Molding—due to the latter’s unique complexity (e.g., multi-stage processing, sensitive material interactions) and numerous variables. A comprehensive quality assurance program must address potential issues at each stage of MIM production, from feedstock preparation through final inspection of sintered parts.
Quality challenges in Metal Injection Molding can manifest as dimensional inaccuracies, surface defects, internal porosity, or inadequate mechanical properties. These issues often result from improper process parameters, material inconsistencies, or design factors. Implementing robust process controls, statistical process control (SPC), and thorough inspection protocols is essential for maintaining high-quality production.
Key Quality Metrics in MIM
Dimensional Accuracy
Typically ±0.3% for most geometries after sintering
Density
95-99% of theoretical density for most alloys
Surface Finish
Typically 1-3 μm Ra without additional finishing
Mechanical Properties
Comparable to wrought materials of the same alloy
Common Quality Issues in MIM and Their Solutions
1 Dimensional Inconsistencies
One of the most prevalent quality challenges in Metal Injection Molding is achieving consistent dimensional accuracy across production runs. This issue stems from the complex shrinkage behavior during sintering, which can vary based on part geometry, material, and process parameters.
Causes:
- Inconsistent feedstock composition or properties
- Variations in injection molding parameters
- Non-uniform debinding rates
- Fluctuations in sintering temperature or atmosphere
- Part geometry effects (thickness variations, complex features)
Solutions:
- Implement strict feedstock quality control protocols
- Maintain tight control over injection molding parameters
- Optimize debinding cycles for uniform binder removal
- Use precision sintering furnaces with advanced temperature control
- Implement design guidelines specific to Metal Injection Molding
- Utilize statistical process control (SPC) for critical dimensions
2 Porosity and Density Issues
Porosity in Metal Injection Molding parts can significantly reduce mechanical properties, fatigue strength, and corrosion resistance. Both surface and internal porosity can occur, with various root causes depending on the stage of the process.
Causes:
- Inadequate feedstock homogeneity
- Air entrapment during injection molding
- Incomplete binder removal during debinding
- Insufficient sintering temperature or time
- Contamination during processing
- Excessive particle oxidation
Solutions:
- Ensure proper feedstock mixing and pelletization
- Optimize injection parameters to prevent air entrapment
- Validate debinding cycles with residual binder testing
- Optimize sintering profiles for complete densification
- Implement strict cleanroom protocols for critical applications
- Use appropriate sintering atmospheres to prevent oxidation
- Implement non-destructive testing (NDT) for critical parts
3 Surface Defects
Surface defects in Metal Injection Molding parts can affect both aesthetic appearance and functional performance. These defects can originate in any stage of the process and often require careful analysis to identify their root cause.
Common Surface Defects:
- Flow lines and weld lines from injection molding
- Binder residues or stains from incomplete debinding
- Oxidation or discoloration from sintering
- Pitting or voids from gas entrapment
- Scratches or handling damage
Solutions:
- Optimize mold design and gating for improved flow
- Adjust injection parameters to eliminate flow lines
- Validate debinding processes to ensure complete binder removal
- Control sintering atmosphere purity and flow rates
- Implement proper handling procedures with cleanroom protocols
- Consider secondary finishing processes for critical surfaces
4 Mechanical Property Variations
Inconsistent mechanical properties can undermine the reliability of Metal Injection Molding parts in critical applications. These variations are often related to microstructure differences caused by process inconsistencies.
Causes:
- Variations in sintered density
- Inconsistent grain structure from non-uniform cooling
- Residual stresses from uneven shrinkage
- Contamination affecting material properties
- Improper heat treatment after sintering
Solutions:
- Implement strict process controls for consistent densification
- Optimize sintering cooling rates for uniform microstructure
- Develop appropriate post-sintering heat treatments
- Implement material certification and testing protocols
- Use statistical process control for key mechanical properties
- Perform regular destructive testing on process validation samples
Quality Control and Testing Methods
A robust quality control program is essential for ensuring consistent production in Metal Injection Molding. This program should include both in-process monitoring and final part inspection to identify issues early and prevent defective parts from reaching customers.
In-Process Quality Control
-
Feedstock Testing
Regular testing of powder characteristics, binder composition, and feedstock rheology ensures consistent starting material for Metal Injection Molding.
-
Process Parameter Monitoring
Real-time monitoring of injection molding, debinding, and sintering parameters with automated alerts for out-of-spec conditions.
-
In-Process Inspection
Regular sampling and inspection of green parts, brown parts, and sintered parts at key process stages.
Final Part Testing
-
Dimensional Inspection
Coordinate measuring machine (CMM) analysis and optical comparators for verifying critical dimensions in Metal Injection Molding parts.
-
Mechanical Testing
Tensile testing, hardness testing, and impact testing to verify mechanical properties meet specifications.
-
Non-Destructive Testing
X-ray inspection, ultrasonic testing, and visual inspection for detecting internal and surface defects in Metal Injection Molding components.
Implementing a comprehensive quality management system that integrates these testing methods with corrective and preventive action (CAPA) processes is essential for maintaining the highest standards in Metal Injection Molding production. Continuous improvement through data analysis and process optimization further enhances quality consistency over time.
Special MIM Processes
Advanced and specialized Metal Injection Molding techniques developed for specific applications and materials.
"Specialized Metal Injection Molding processes extend the capabilities of traditional MIM, enabling new applications in demanding industries."
Overview of Specialized MIM Processes
While traditional Metal Injection Molding (MIM) is suitable for many applications, specialized processes have been developed to address specific challenges or requirements—for example, when larger, high-volume complex metal parts are needed, die casting becomes a go-to choice for producing die cast metal (formed by forcing molten metal into molds under high pressure). These advanced techniques extend the capabilities of MIM, enabling the production of larger parts (a strength of die cast metal manufacturing), parts with unique properties, or components made from challenging materials.
Specialized Metal Injection Molding processes often combine elements of traditional MIM with other manufacturing technologies or unique process modifications. These innovations have expanded the range of applications for MIM, particularly in high-performance sectors such as aerospace, medical devices, and energy.
Specialized equipment for advanced Metal Injection Molding processes
Micro Metal Injection Molding (μMIM)
Micro Metal Injection Molding is a specialized process designed for producing extremely small metal components with high precision. This technique extends the capabilities of traditional MIM to the microscale, enabling the production of parts with features measuring in microns rather than millimeters.
Key Characteristics of μMIM
- Part sizes typically less than 10 mm in all dimensions
- Feature sizes as small as 50-100 microns
- Tight tolerances of ±1-5 microns
- Very fine metal powders (1-5 microns)
- Specialized micro-injection molding machines
Applications of μMIM
- Medical devices (micro-surgical instruments, drug delivery components)
- Electronics (micro-connectors, sensor components)
- Watchmaking and precision instrumentation
- Micromechanics and micro-optics
- Aerospace micro-components
The challenges of micro Metal Injection Molding include precise control of extremely small injection volumes, maintaining dimensional accuracy during sintering, and handling and inspection of tiny components. Specialized equipment, including high-precision molds with micro-features and advanced metrology tools, is essential for successful μMIM production.
Large Part Metal Injection Molding
Traditional Metal Injection Molding is typically limited to parts weighing less than 50 grams. Large part MIM processes have been developed to produce larger components, often weighing several hundred grams, while maintaining the advantages of MIM for complex geometries.
Producing large parts with Metal Injection Molding presents unique challenges, primarily related to feedstock flow, uniform debinding, and controlled sintering. The increased mass and volume make it more difficult to achieve uniform density and prevent defects like warping or cracking during processing.
Key Developments in Large Part MIM
Advanced Feedstock Formulations
Special binder systems with improved flow characteristics and higher powder loading enable better filling of large mold cavities while maintaining green strength in large Metal Injection Molding parts.
Optimized Injection Molding Parameters
Modified injection profiles, including slower filling rates and higher packing pressures, help prevent air entrapment and ensure uniform density in large cross-sections.
Staged Debinding Processes
Advanced debinding cycles with precise temperature ramps and atmosphere control prevent defects in large parts where binder removal takes significantly longer.
Sintering Optimization
Specialized sintering schedules with controlled heating rates and possibly applied pressure help achieve uniform densification throughout large Metal Injection Molding components.
Applications for large part Metal Injection Molding include automotive components, industrial machinery parts, and certain aerospace components. These applications benefit from the ability to produce complex, near-net-shape parts that would require extensive machining if produced using traditional methods, resulting in significant material savings and reduced production costs.
Multi-Material Metal Injection Molding
Multi-material Metal Injection Molding enables the production of components combining different metals or metal-ceramic combinations in a single part. This advanced technique creates parts with tailored properties in different regions, such as combining wear-resistant and corrosion-resistant materials in a single component.
Cross-section of a multi-material component produced with Metal Injection Molding
Multi-MIM Process Techniques
-
Two-shot injection molding
Sequential injection of different feedstocks into a single mold
-
Insert molding
Molding one material around a pre-formed component of another material
-
Co-injection molding
Simultaneous injection of different materials into the mold cavity
Benefits and Applications
-
Functionally graded materials
Medical implants with varying mechanical properties
-
Combined properties
Wear-resistant components with corrosion-resistant surfaces
-
Integrated functionality
Electrical components combining conductive and structural materials
The primary challenge in multi-material Metal Injection Molding is ensuring proper bonding between materials during sintering while accommodating differences in shrinkage rates. This requires careful material selection, process optimization, and often specialized sintering cycles to achieve strong, defect-free interfaces between different materials.
Hybrid MIM Processes
Hybrid Metal Injection Molding processes combine MIM with other manufacturing technologies to leverage the strengths of each approach. These hybrid techniques address specific limitations of traditional MIM or enable new capabilities by integrating complementary processes.
MIM + Additive Manufacturing
Combining Metal Injection Molding with 3D printing for mold inserts or for producing pre-forms that are then finished via MIM.
Applications: Rapid prototyping, customized components
MIM + Machining
Using MIM to produce near-net-shape parts followed by precision machining for critical features that require tighter tolerances than MIM alone can achieve.
Applications: Precision gears, bearing surfaces
MIM + Surface Treatment
Combining Metal Injection Molding with specialized surface treatments such as PVD coating, plating, or heat treatment to enhance surface properties.
Applications: Medical devices, wear components
Hybrid Metal Injection Molding processes represent a growing area of innovation, enabling manufacturers to optimize production for cost, performance, and efficiency. By combining MIM with other technologies, it's possible to achieve results that would be difficult or impossible with any single process alone.
Special MIM Materials
Advanced metal materials optimized for Metal Injection Molding processes and high-performance applications.
"The development of specialized materials has been instrumental in expanding the application range of Metal Injection Molding into demanding industries."
Materials for Advanced Metal Injection Molding
While traditional Metal Injection Molding (MIM) was initially limited to a few standard alloys, the development of specialized materials—driven by technological advancements in injeksi molding (a universal molding process that laid the foundation for MIM’s metal-forming application)—has significantly expanded its capabilities. Today, MIM can process a wide range of metals and alloys, each offering unique properties tailored to specific applications, mirroring the material innovation trend within the larger injeksi molding field.
The success of Metal Injection Molding with any material depends on the powder characteristics, binder formulation, and process parameters being carefully matched to the material's properties. Specialized materials often require customized processing to achieve optimal results.
Specialized metal powders optimized for Metal Injection Molding
Titanium and Titanium Alloys
Titanium and its alloys are highly desirable for applications requiring high strength-to-weight ratios, excellent corrosion resistance, and biocompatibility. However, these materials present unique challenges for Metal Injection Molding due to their high reactivity at elevated temperatures.
Processing Challenges
- High reactivity with oxygen, nitrogen, and carbon at sintering temperatures
- Requires specialized sintering atmospheres (typically high-purity argon or vacuum)
- High sintering temperatures (1200-1400°C) increase processing complexity
- Fine titanium powders present handling and safety considerations
Key Alloys and Applications
-
CP Titanium (Grade 1-4)
Medical implants, chemical processing components
-
Ti-6Al-4V
Aerospace components, high-performance medical devices
-
Ti-6Al-7Nb
Biomedical implants, particularly orthopedic applications
Despite these challenges, titanium Metal Injection Molding has become increasingly viable for high-value applications where the material's unique properties justify the additional processing costs. Advances in powder production, binder systems, and sintering technology have significantly improved the quality and consistency of titanium MIM parts.
Superalloys
Superalloys are high-performance materials designed to maintain their mechanical properties at elevated temperatures, making them ideal for extreme environments. The complex compositions and high melting points of these alloys present unique challenges for Metal Injection Molding.
Nickel-based and cobalt-based superalloys are the most commonly processed via Metal Injection Molding, though iron-based superalloys are also used in certain applications. These materials typically contain multiple alloying elements, including chromium, aluminum, titanium, and various refractory metals, which contribute to their high-temperature performance.
Common Superalloys for MIM
Inconel® Alloys (625, 718)
These nickel-chromium alloys offer excellent corrosion resistance and mechanical properties at temperatures up to 1000°C. Metal Injection Molding of Inconel® is used for aerospace components, gas turbine parts, and chemical processing equipment.
Hastelloy® Alloys
Known for exceptional corrosion resistance in harsh chemical environments, Hastelloy® alloys processed via MIM find applications in chemical processing, pollution control equipment, and oil and gas components.
Cobalt-Chromium Alloys
These alloys combine high strength, wear resistance, and biocompatibility. Metal Injection Molding of cobalt-chromium alloys is widely used for medical implants, particularly dental and orthopedic applications, as well as high-temperature industrial components.
Processing superalloys via Metal Injection Molding requires specialized sintering cycles, often in high-purity inert or reducing atmospheres. The high sintering temperatures (typically 1200-1400°C) and long hold times required for proper densification demand advanced furnace technology. Despite these challenges, superalloy MIM offers significant cost and performance advantages over traditional manufacturing methods for complex, high-value components.
Refractory Metals
Refractory metals, including tungsten, molybdenum, tantalum, and niobium, are characterized by their extremely high melting points, excellent thermal conductivity, and resistance to wear and corrosion. These properties make them valuable for specialized applications, but also create significant challenges for Metal Injection Molding.
Material Characteristics and Challenges
- Extremely high melting points (2000°C and above)
- Require very high sintering temperatures
- Often require pressure-assisted sintering for full densification
- High powder costs compared to standard metals
Key Materials and Applications
-
Tungsten
Balancing weights, radiation shielding, high-temperature components
-
Molybdenum
Heating elements, high-temperature fixtures, aerospace components
-
Tantalum
Medical implants, chemical processing, electronic components
Due to their unique properties and processing challenges, refractory metal Metal Injection Molding is typically reserved for high-value applications where no substitute materials will suffice. The ability to produce complex shapes with these difficult-to-machine materials makes MIM an attractive manufacturing option despite the higher processing costs.
Functional and Composite Materials
A growing area of innovation in Metal Injection Molding is the development of functional and composite materials that combine metals with other materials or incorporate special properties. These advanced materials enable new applications by providing unique combinations of properties not available in monolithic metals.
Metal-Ceramic Composites
Combinations of metals with ceramic particles or fibers create materials with enhanced wear resistance, high-temperature performance, or unique electrical properties.
Applications: Cutting tools, electrical contacts, wear components
Magnetic Materials
Metal Injection Molding of soft and hard magnetic materials enables complex magnetic components with tailored properties.
Applications: Electric motors, sensors, magnetic shielding
Porous and Cellular Materials
Controlled porosity in MIM parts creates materials with specific permeability, lightweight properties, or enhanced surface area.
Applications: Filters, biomedical implants, heat exchangers
The development of these advanced materials for Metal Injection Molding is driven by the need for components with increasingly complex functionality. By combining different materials and leveraging the design freedom of MIM, manufacturers can create integrated components that replace assemblies of multiple parts, reducing cost and improving performance. As material science continues to advance, the range of functional materials suitable for Metal Injection Molding is expected to grow, further expanding the technology's application possibilities.
Ready to Master Metal Injection Molding?
Whether you're new to Metal Injection Molding or looking to advance your expertise, our comprehensive handbook is your definitive resource.
Subscribe to Our MIM Newsletter
Stay updated with the latest developments in Metal Injection Molding technology, materials, and applications.
